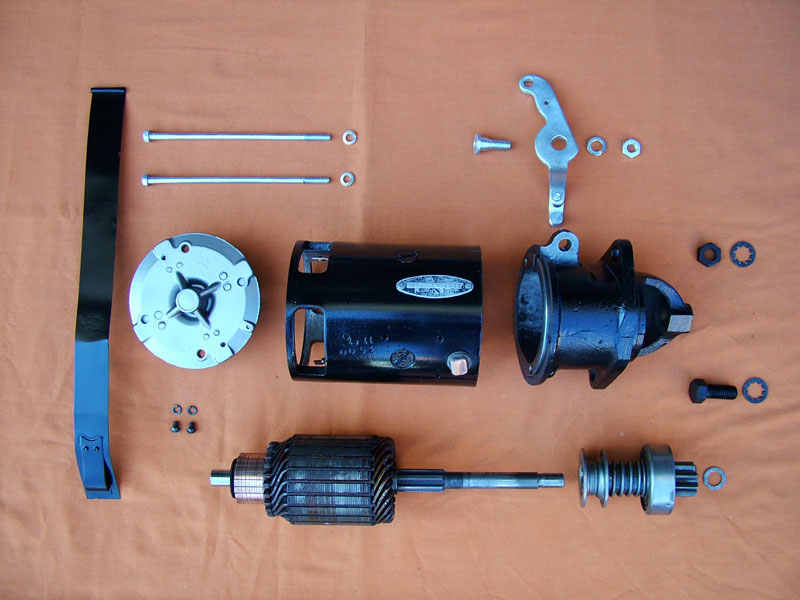

Just like my generator I took apart my starter to completely
overhaul it, below are the
components before assembly.

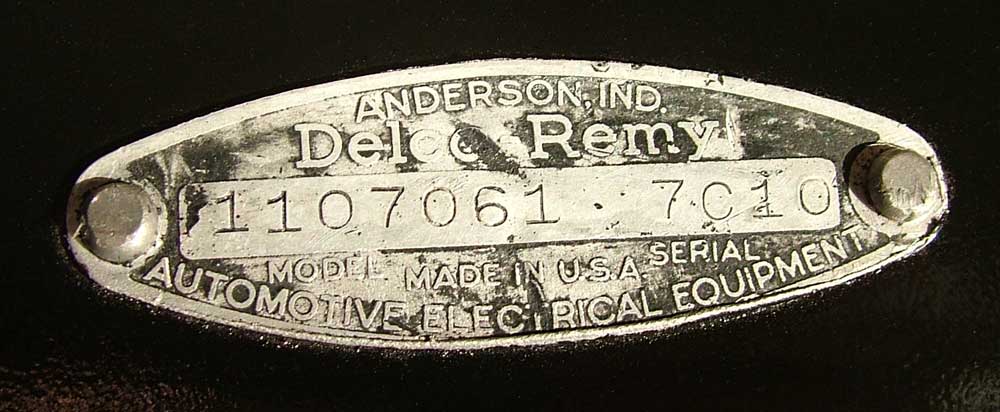

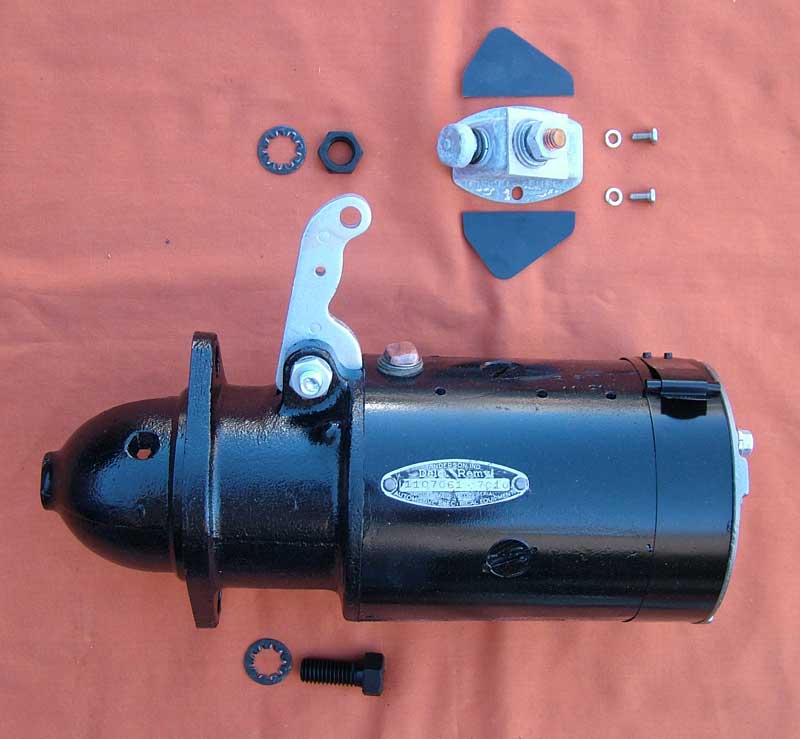

Here is the assembled starter and like the generator it has the
original Delco tag with
matching numbers.
