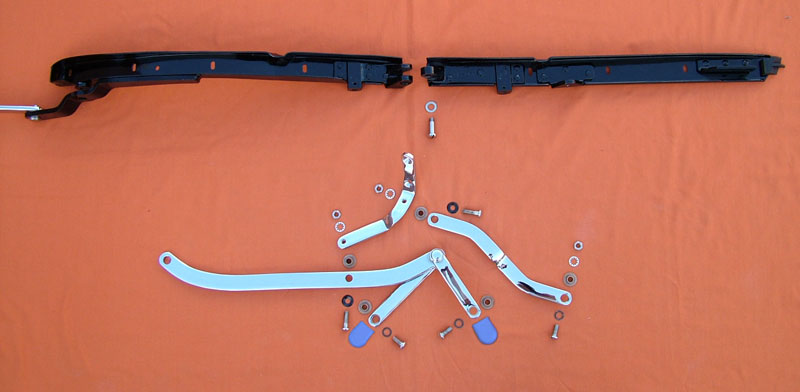

I then proceeded to assemble the front and middle side rails together along with
the convertible
links. All the original bushings were in excellent shape, they just needed to be
cleaned up.

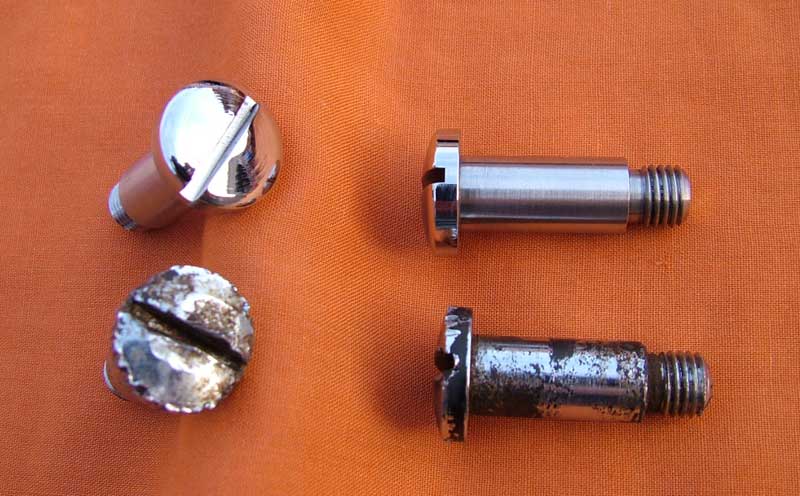

The original screws that make up the hinges for
the front and middle side rails were damaged
during disassembly, it was unavoidable. Again a machinist was called upon to
make me new
screws duplicating the originals. Shown below are the end
product, excellent.
