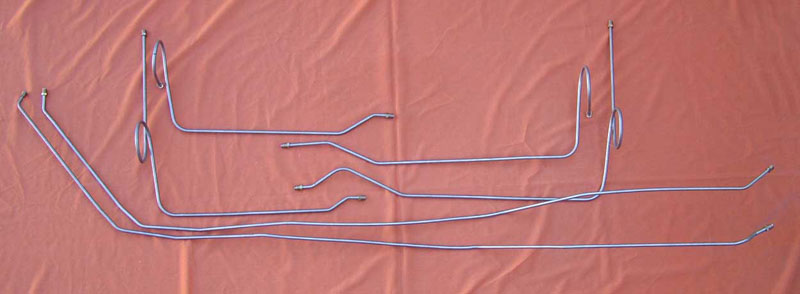

Shown are the new stainless steel convertible hydraulic lines with the
exception of the two firewall lines which have been already installed.
Sorry for not showing the firewall lines, I sometimes forget to document
things because I am excited to put things together and it slips my mind.

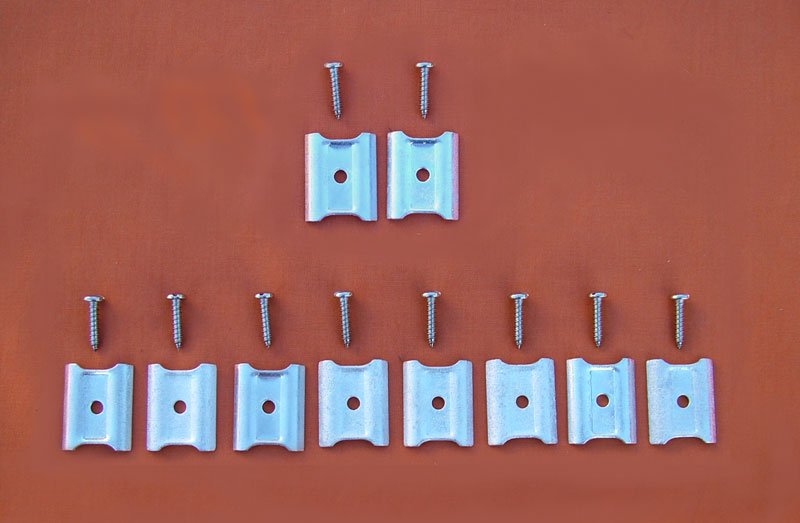

These are the the clips that hold the hydraulic lines in place as they are routed through
the car. Since these screws go through the sheet metal and are exposed to the bottom
of the car they are susceptible to rusting, therefore I bought new stainless steel sheet
metal screws that match the originals for mounting the clips. Two clips are used for
the firewall and the other eight are used in the interior flooring.
