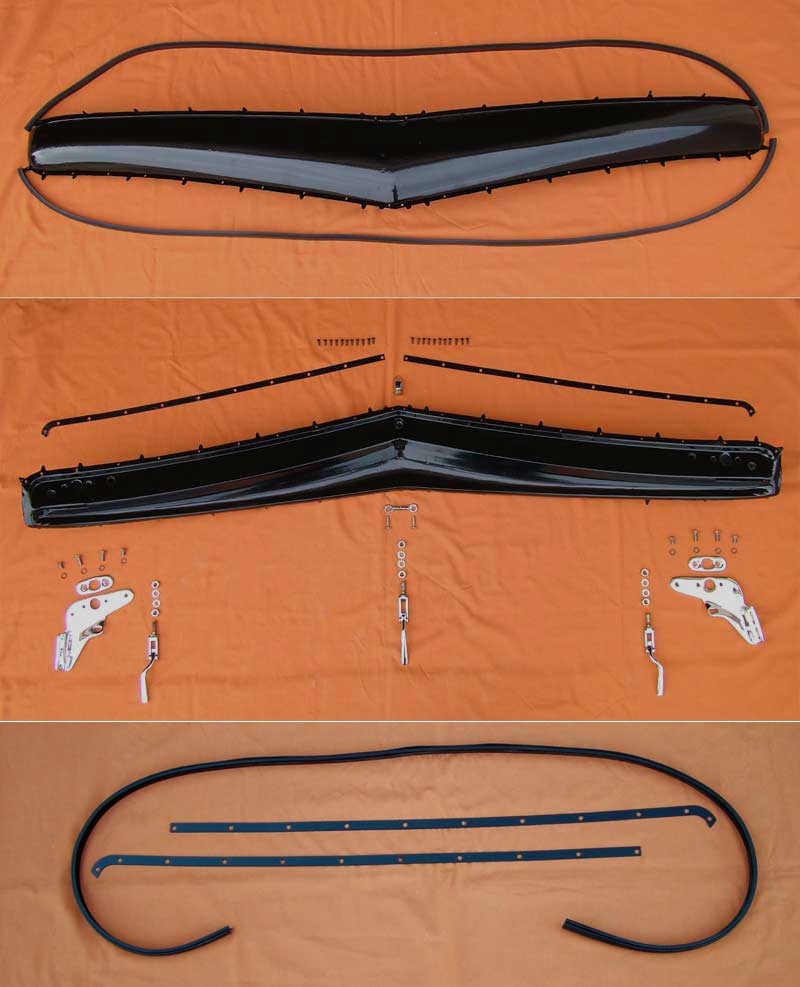

Shown below in the top frame is the front header bow with the tacking strip.
In the middle frame all components needed to complete the front headed bow.
The bottom frame shows the front header bow weather strip and it's retainers.

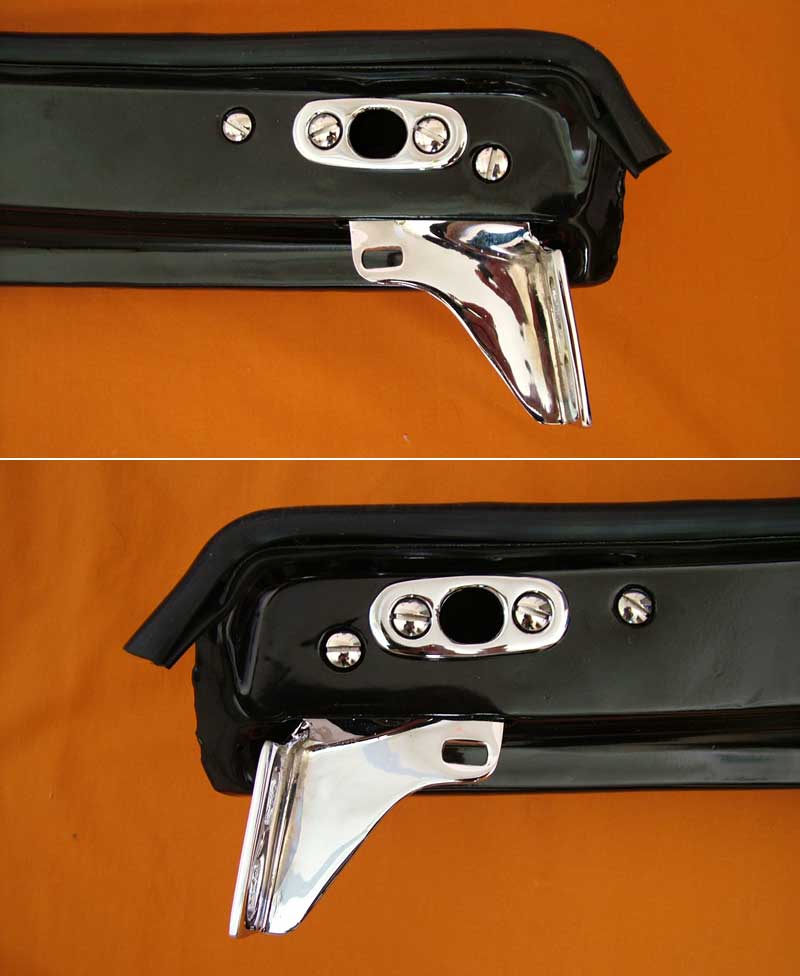

Shown below are the right and left front header
bow assembled with the brackets that attaches to
the side rails. Also assembled are the pin
guides. The weather strip has not been trimmed just yet,
it will be trimmed at the time the front
header bow and side rails are assembled. The top latches
(clamps)
will not be assembled until the rack has been
assembled to the car body.
